Can This capsule can help you live on A Tsunami?

The 2011 Tōhoku earthquake induced a tsunami off Japan’s coast that killed nearly sixteen,000 people and injured 6,000 more. Tsunami early warning systems prompted evacuations, but some bodily couldn’t leave—principally youngsters, the aged, and the infirm. What if you’ll want to offer protection to the immobilized from nature’s worst? Survival capsule, a small company just north of Seattle, Washington, is channeling its founders’ many years of aerospace expertise into constructing ultrastrong spheres for folk to shelter inside of all over catastrophic storms.

The clock is ticking: experts predict another massive tsunami to wreck Japan’s coast within the next two decades. Can the Survival pill company persuade Japan that its impregnable bathyspheres will shop jap folks?

In idea, crawling inside of a Survival pill and bolting the door will prevent from the rest a tsunami can throw at you—impacts, heat from fires, and even survive underwater with a 60-minute air tank. so long as the pod is not submerged underwater, survivors can keep inside of it indefinitely and use it for safe haven after the storm has handed. Tsunami waves normally flow round 25 mph, so the tablet would have to face up to affects from objects carried with the aid of the wave at that velocity—but Survival tablet’s assessments have discovered that the capsule can withstand impacts from objects at up to 75 mph, says the corporate’s president and cofounder Julian Sharpe.

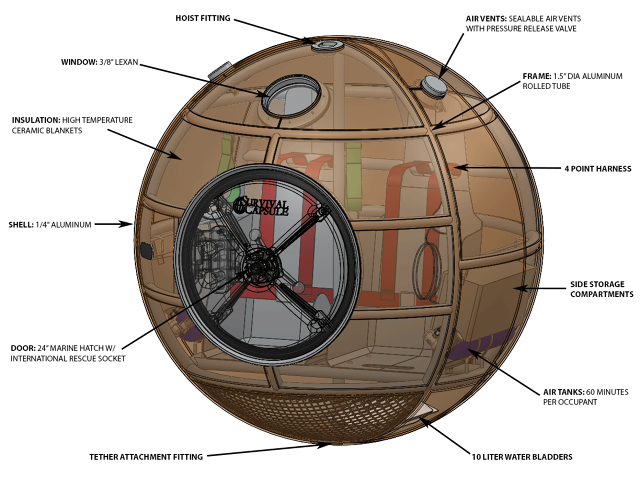

The capsules themselves are spherical metallic cages sheathed in an plane-grade aluminum shell and the within of the shell is lined with a ceramic thermal blanket to offer protection to from excessive warmth and maintain the tablet from cooking its inhabitants. If it seems like a spaceworthy get away pod, that’s for a excellent purpose: Sharpe and Survival tablet’s different cofounder Scott Hill every have many years of aerospace experience designing industrial aircraft and spacecraft. At any altitude, maintaining the structural integrity of an aircraft is essential: a single breach could rip the plane apart. the same applies to the Survival tablet.

“The capsule is just like an aircraft—it has to take care of its structural integrity. An airplane is designed to do 20,000 flying hours. that you can’t come up with the money for failure,” says Sharpe.

however in an environmental immersion check last January, a Survival capsule did expertise a failure—a human failure. The team had hauled one in all their experimental two-particular person survival drugs to an Oregon river and, when a pc technician rebooted the pc sensors inside the capsule, the technician failed to totally bolt-lock the door while closing it from the outside. The pill sunk. That’s most effective that you can think of while you’re closing it from the outside, says Sharpe—inside of, which you could obviously inform when the door bolts engage, as can be seen at the finish of Survival capsule’s capsule construction video. For the next test in February, the Survival pill team had been extra cautious to bolt the door—and no flooding passed off. nonetheless, it has led Sharpe to devise for emergency guide playing cards to incorporate with the capsules like those utilized in airplanes.

Is the Survival pill too advanced—particularly for disaster-panicked customers? We most probably is not going to to find out except a Survival capsule will get used as meant in a natural disaster. extra importantly: will have to survival pods be part of a catastrophe preparedness plan at all?

Patrick Corcoran, a coastal hazards outreach professional at Ocean Sea furnish at Oregon State university, dislikes the weak planning infrastructure around survival pods. not everyone can manage to pay for a $10,000 pod, he says, and if a tsunami warning is sounded, folks have simplest 15-30 minutes to get to their pod. What if they’re at work, too far from their pod? What if they’re having visitors over and can’t match them in the pod? in some way, Corcoran believes that survival pods are an engineering approach to a human habits problem. Survival pods are unproven in a catastrophe, whereas tried-and-tested human evacuation plans still retailer many individuals—why now not simply improve the human habits?

“It appears extra efficacious to ‘transfer to high floor after a major earthquake,'” Corcoran wrote in an electronic mail. “this may increasingly additionally make individuals take into accounts evacuation routes, assembly areas, and the general public investments needed to develop these proven methods.”

Sharpe and Hill constructed the Survival tablet expressly for less-cell individuals—the elderly, the infirm, and the young—who can’t evacuate to better ground in time (if in any respect). however the Survival capsule additionally goals to be a failsafe for freak storms that right away turn into far extra bad than at first thought. the pc-modeled predictions straight away following the 2011 ōhoku earthquake informed residents close to the epicenter of the tsunami to arrange for six-meter high waves, according to Nature. The predictions had been incorrect and 20-meter waves crashed over city sea walls—and reportedly one of the vital 9,540 killed in Miyagi prefecture believed that they had retreated to a safe distance. The tsunami destroyed sea walls and leveled three-story structures that individuals were sheltering inside of.

whereas individuals residing in Japan and elsewhere alongside the tsunami-susceptible Ring of fire steadily teach for tsunami evacuation, americans do not. altering folks’s minds is a large endeavor, says Dr. Eddie Bernard, advisor for Survival pill and former head of the tsunami-tracking company nationwide Oceanic and Atmospheric association.

“With typhoon Sandy, now not everyone evacuated. Some individuals stayed in their properties. There’s numerous proof that this can be a greater problem than persons are admitting,” says Bernard. “Globally, 60,000 individuals per yr are at risk. if you happen to start to take a look at the numbers, on the focus of people and the growing urban centers, you begin to look at ports: New York city, Seattle, los angeles, Miami, Singapore, Shanghai, cities in India.”

Sharpe notion up the pill after the devastating 2004 Indonesia tsunami, but fully committed to the Survival tablet challenge after the 2011 japanese earthquake and tsunami. a neighborhood reporter wrote about Sharpe and Hill’s nascent Survival pill and presented them to Bernard. The Survival pill staff entered their capsule thought in a may just 2011 NASA Tech brief competition and positioned 9th out of 350 entries. The Survival pill workforce took their prototype pill around Japan to annual disaster preparedness expositions in Yokohoma and Sendai in 2012 and 2013. That’s the place they met the competition: fiberglass tablets. Sharpe was once not impressed.

“after I went to Sendai [post-tsunami] I noticed rebar far and wide. when you’re operating at 16 or 17 miles per hour in a water float and happen to hit these, glass fiber doesn’t take in that impact—however aluminum does,” says Sharpe. “in the drop exams with our capsule at 10 feet with a most load of supplies and weight representation of individuals, simulating an impression of 20 miles per hour, all we obtained were just a few dents. Drop a plastic capsule the same means and you’ll get cracking and your structural integrity will get impaired.”

Competing survival pod designs have surfaced since the 2011 tsunami, including Noah, a spherical pod that appears strikingly similar to Sharpe and Hill’s Survival tablet. but watch this CBS video document and also you’ll see that Noah is an easy fiberglass shell with out the Survival tablet’s steel interior body or thermal coating. building in fiberglass keeps value down—Noah had retailed for $three,500 and could squeeze in 4 adults while the basic 2-individual Survival tablet costs $10,000—however fiberglass melts underneath excessive heat and exudes toxic fumes, says Bernard. Worse, if the fiberglass warps, the door may not seal shut. however the comparison might be moot: the Noah survival pod does not seem that you can buy anyplace online, and it can be former area is now on the market.

Survival tablet is selling its made-to-order tablets via its web page. Survival capsule has already offered 10 two-particular person drugs in Japan through an area company, says Bernard, and lengthy-distance adventurer Alex Bellini is preparing to are living within a ten-individual Survival pill for a year atop an iceberg as a part of his Adrift endurance stunt. sadly, public interest in mess ups is fickle, leaving with the tide as new stories capture the general public imagination.

“It’s been 4 years since the final major tsunami and that’s most probably in regards to the time when people begin forgetting that the hazard exists, so we’re combating amnesia,” notes Bernard. “they say, ‘why am I concerned about this?'”

that suggests Survival tablet’s trade may now not choose up unless after every other disaster. All they may be able to do in the intervening time, Bernard says, is make a product that lasts.
