This unbelievable robotic-inspired Prosthetic promises Amputees An easier Stride

For an amputee left unable to stroll, prosthetic limbs is usually a existence-changer. nonetheless, there’s no getting round the truth that conventional prosthetic legs are not up to best. Even recent powered, robotic legs can be clunky, requiring careful fine-tuning via clinicians. folks the usage of these kind of prostheses are likely to fall extra steadily, as a result of a scarcity of sensory feedback. additionally they stroll more slowly and exert more power too. thankfully, robots can assist. “Ever seeing that my graduate days I’ve been occupied with the fact that we can create robots to mimic the way we stroll—and even perhaps help people who are unable to stroll to take action,” says Dr. Robert Gregg, an assistant professor of bioengineering and mechanical engineering within the Erik Jonsson school of Engineering and computer Science at the college of Texas at Dallas.

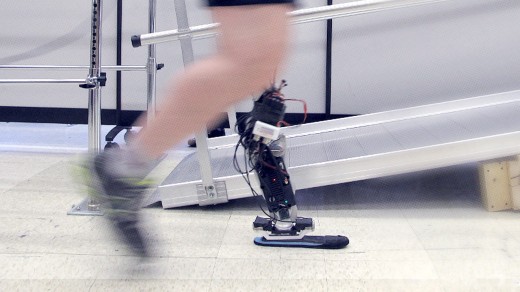

over the last half decade there was a revolution in powered prostheses—or robotic legs—aided by way of the advent of latest light-weight motors, sensors, and microprocessors. This has resulted in more advantageous prostheses too, but the know-how remains to be bulky, and requires significant adjusting for the user and tweaks by way of rehabilitation experts. in the design of bipedal robotic legs, Dr. Gregg saw a chance to improve the prosthetic model, by replicating a human’s natural gait by looking at a single variable: the center of power on the foot, which strikes from heel to toe as a person walks. When utilized to a sensor-equipped robotic prosthesis, this “keep watch over strategy” lets in Gregg, on his personal, to modulate settings for the leg so much faster than it generally takes a team of rehabilitation specialists. This also lets in for the person to more simply adapt to diversifications in strolling velocity and environmental stipulations than with current prostheses. In a find out about that concerned strolling on a treadmill at varying speeds, individuals trying out the robotic prosthesis had been able to stroll almost as fast as an individual the use of biological legs. the outcome might enhance the quality of lifetime of tens of millions of decrease-limb amputees.

one of Dr. Gregg’s key contributions to the sector of powered prostheses is his software of what is called robotic keep watch over theory. As he explains it, even though the human body is ready to execute a wide range of movements, it’s a minor miracle that it is able to get up at all. Even a job as apparently simple as strolling without falling down is immensely advanced—and a problem to someone working in robotics. “There are a whole bunch of variables serious about strolling,” says Gregg. “There are multiple joints, all of which is able to bend in different directions. in addition to the skeletal machine, you even have numerous muscular tissues. to ensure that our body as a way to walk, and no longer merely to give way, all of those want to coordinate perfectly with each and every other.” that is the place earlier analysis into powered prostheses has steadily faltered. The robotic legs themselves could possibly generate force using constructed-in motors, however they lack the vital regulate to remain secure whereas coping with changing terrain and other disturbances. walking on a flat surface at a fixed speed is all well and just right, however trying to lengthen this to more challenging duties (like hiking stairs or navigating a ramp) incessantly results in challenges. that is partly because many earlier researchers have chosen to study the so-known as “gait cycle” in response to events occurring over time. The gait cycle refers back to the method wherein people stroll and run. It includes two varied levels: the “stance” section, wherein part of the foot comes into contact with the ground, and the “swing” section, during which that same foot doesn’t contact the ground at all. A time-primarily based gait cycle can mimic the looks of walking, however offers little or no flexibility to adjustments in walking speed or environmental stipulations.

Following in the footsteps of humanoid robot designers, Gregg proposes a new method to replicate the process of a person walking for a prosthesis: by way of measuring one single variable representing the human physique in movement. The a very powerful variable right here is the heart of power on the foot, which travels from heel to toe because the gait cycle takes place. the result is a more steady, versatile approach to tasks like strolling.

After originally checking out his thought the usage of pc fashions, Gregg lately had the chance to actually run his know-how thru its paces with the assist of three above-knee amputee contributors. These individuals have been recruited with the support of the Rehabilitation Institute of Chicago and the university of new Brunswick, each of that have been concerned with the work top as much as and including these experiments. “It used to be superb to work with the study’s individuals, and to see the years of labor we’d put in actually begin to repay,” Gregg says. Gregg configured his algorithms with the users’ top, weight, and thigh dimension. They were then requested to walk on a treadmill for quarter-hour at more than a few speeds. At their quickest, the contributors were walking at more than one meter per 2nd—which is rather less than the common 1.three meters per second strolling pace of in a position-bodied folks. “One factor we observed is that it, unsurprisingly, takes people a while to improve belief that the leg is going to behave the way in which they want it to,” says Levi Hargrove, director of neural engineering for the Prosthetics and Orthotics Laboratory Rehabilitation Institute of Chicago—who was once concerned within the study. “in the beginning, individuals are occupied with whether or not the leg will grasp them up. after they see that it does, they start the usage of it at gradual speeds, sooner than progressively growing extra assured. It’s no different than another expertise in that approach,” he says. This component of belief is a very powerful—and a reason why Gregg’s analysis is about greater than only a nifty new algorithm attention-grabbing purely to researchers. the appropriate powered prosthesis must have a synergistic relationship with its user: cooperating with them slightly than feeling like a separate entity. “My hope is that the keep an eye on technique that we’re growing will permit sufferers to make use of prosthetic legs more naturally, like they might with organic limbs,” says Gregg. “The goal is for the human person of the leg to not have to place any further idea into walking. this might mean seamlessly adjusting to strolling speeds as the topic decides to stroll slower or faster.”

Gregg says that he was extraordinarily ok with the test, however there’s still loads of work to do ahead of his technology may also be made to be had to most people. for instance, while the learn about successfully verified that the powered prosthesis can intelligently adapt to different strolling speeds, it nonetheless needs to be shown that it will possibly shift between different actions without problems. this is particularly an important when coping with actual-world scenarios that haven’t in the past been predicted. “That’s a problem that our lab is looking at presently,” Gregg says. “even though we’re 99% correct at picking out what task the leg will have to be coping with at any given time, that still signifies that one out of every one hundred steps it is advisable to have the wrong activity—which is unacceptably general.” For this advance to take place, researchers should continue to develop different ways for the consumer to interface with their prosthesis. This generally is a mechanical motion of residual muscular tissues (think the leg an identical of a touch-reveal gesture) or more refined muscle activation, as measured using electrodes. The intention of each could be to permit the person to subconsciously change between gait patterns when awaiting a role change. “whilst you use voice attractiveness in your telephone, should you have been to have a look at that voice waveform for your pc it will be incredibly noisy,” says Levi Hargrove. “but the algorithm and signal processing for your telephone does a good job of picking up what you’re seeking to say, by means of converting that noisy sign into helpful knowledge. When your muscular tissues contract, they make indicators that are very much like a voice signal. the ideas is there in the event you decode it correctly.” ultimately, the work is a thrilling breakthrough that suggests that prosthetic legs might sooner or later soon might come close to matching the performance of organic limbs. “It’s my dream that motorized robotic limbs will be capable of do all of the on a regular basis issues that almost all of us take as a right, like working to capture a bus,” says Dr. Gregg. it’s going to happen faster than you think, too. “i believe this will be to be had inside three to 5 years, which is beautiful near-time period for the prosthetics and robotics industry,” says Hargrove. “I’m very optimistic.”
